PET Strapping Supplier: Heat-Seal Joint Strength and Sealing Reliability

A PET Strapping Supplier should be evaluated on more than strap tensile strength. On an automated pallet line, a strap may withstand the specified load while its welded overlap peels or breaks during handling. Reliable load containment depends on the interaction between PET material properties, sealing conditions, dimensional consistency, and machine-applied tension.

Why Joint Strength Is Different From Strap Strength

Breaking strength is the maximum load that an unjoined strap can withstand. Joint strength is the load that a specimen containing a connection can withstand.

Joint Efficiency (%) = (Joint Breaking Load / Unjoined Strap Breaking Load) x 100

An example calculation of joint efficiency is as follows. If a PET strap breaks at 6,000 N and the joint seals at 4,800 N, the joint efficiency would be 80 %. This example calculation is for illustration purposes and is not a Yalan Pack test result.

In the case of PET strapping, an appearance of integrity does not guarantee the strength of seals. A PET strapping supplier that is capable of sealing PET strapping should be able to test and evaluate joint strengths and seal efficiencies, and provide the results of those tests.

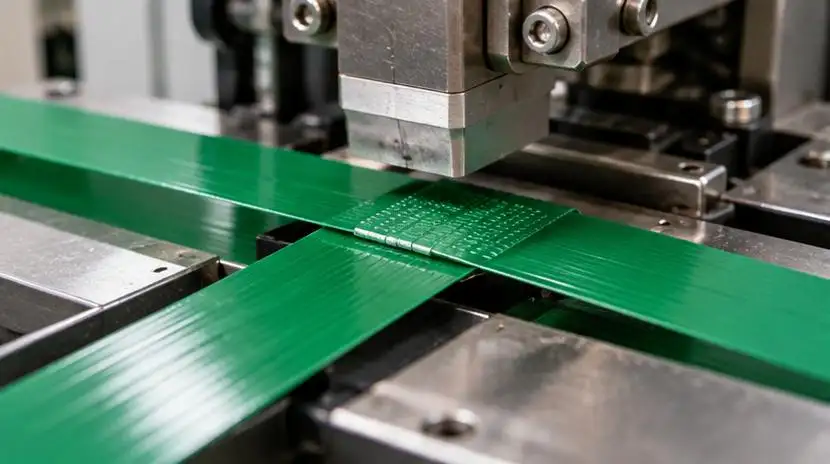

How PET Heat Sealing Creates Reliable Joints

Heat Transfers and Polymer Fusion

Contact heat sealing fuses molecules of polyethylene terephthalate (PET) by applying thermal energy and pressure. The process consists of the following:

•Heating - Thermal energy is applied and controlled to soften or melt the contacting polymer surfaces of the adjoining strands.

•Bonding - While the surface is malleable, the sealing tool is applied to maintain adherence.

•Cooling - The joined area stiffens and the sealing tool is removed from the strap.

An incomplete joint is due to inadequate polymer fusion. Excess heat can cause localized thinning of the terephthalate polymer, degrade the polymer, or modify the oriented molecular structure of the PET.

In friction welding, interfacial heat is generated via mechanical movement as opposed to an external heat source. Both methods require validation with the actual strap grade and sealing equipment.

Key Parameters Affecting PET Heat-Seal Joint Strength

Reliable sealing requires more than just cranking up the heat on the sealing machine.

Parameter	Technical Effect	Potential Failure
Sealing Temperature	Controls interfacial melting	Cold Weld / Thermal damage
Dwell Time	Affects heat exposure	Incomplete / Excessive fusion
Contact Pressure	Maintains bonding contact	Voids / Displaced melt
Cooling Time	Allows joint consolidation	Premature Separation
Strap Thickness	Influences heat transfer	Inevitability of Bond
Surface Condition	Affects contact and fusion	Weak / Inconsistent joints

Processing parameters are constrained. Too much pressure will not generate heat. Too much heat can weaken the joint.

Variation in surface topography may account for differences in sealing of embossed and smooth PET strappings.

There may be some variability in processing conditions due to varying levels of post-consumer recycled PET.

PET strapping manufacturers may have a difficult time meeting performance requirements due to variability of PET raw materials.

Heat Sealing vs Friction Welding: Which Is Better?

The most appropriate joining method for a given situation depends upon several factors, including the design and configuration of the machinery, the type of PET used, and the volume and type of packaging required.

Comparison	Contact Heat Sealing	Friction Welding
Heat generation	Heated element	Mechanical friction
Main controls	Temperature, time, pressure	Motion, time, pressure
Maintenance focus	Heating components	Welding-tool condition
Common risks	Uneven heating, thermal damage	Tool wear, insufficient fusion
Validation	Joint tensile testing	Joint tensile testing

Neither method guarantees higher joint strength under every operating condition.

Buyers should compare tested joint performance rather than relying solely on the sealing technology advertised by a PET Strapping Supplier.

Common PET Strapping Seal Failures and Troubleshooting

Weak Bonds, Brittle Joints, and Inconsistent Sealing

Reasons for failures may be due to:

•Peeling joints: Inadequate contact pressure and/or heating, contaminated surfaces, oxide formation.

•Brittle seams: Overheating, stress concentration, thin sections, residual stress.

•Inconsistent seals: Worn tooling, misalignment, differences in material batches, variation.

•Premature transport failures: Cargo settlement, sharp edge abrasion, excessive tension.

Troubleshooting comprises the following steps:

First, the failure location is inspected. Second, the measurements of the straps are taken. Third, the settings of the sealing head are checked. Fourth, tests are conducted to determine the strength of the joints. Finally, the transport conditions are evaluated.

One of the methods of joint tests is to alter only one process variable and evaluate the effects of the change on the strength of the joints.

Manufacturing Precision and Quality Control of PET Strapping

At Yalan Pack, we manufacture high quality PET machine strapping, PET strapping and PP strapping for automatic and semi-automatic packaging, with various options of width, thickness, strength grade, color and coil.

Our broader specifications of PET strapping include:

Manufacturing Specification	Product Options
Strap width	5-32 mm
Strap thickness	0.4-1.2 mm
Core diameter	200 mm / 406 mm
Tensile strength	Acc. to chosen spec.
Customization	Width, thickness, length, core

These product options are not guaranteed manufacturing tolerances for every grade of PET.

For mechanical properties, extrusion and molecular orientation primarily impact strength.

With respect to precision, buyers should request:

•Breaking load and elongation of strap.

•Breaking load of joints and joint efficiency.

•Sampling limits and dimensional acceptance limits.

•Batch identification.

These measurements let us evaluate a PET Strapping Supplier in ways beyond nominal measurements.

How to Assess Joint Strength Before Buying

Breaking strength and elongation of joints are covered in ASTM D3950-23 and define the requirements for the evaluation of non-metallic strappings and joints.

When considering a purchase of PET Strapping, the tests should assess:

• Consistency: Ensure sample(s) taken from a production representative coil meets specification.

• Mechanical performance: Test the joints for breaking strength and determine the breaking strength of the unjointed strap.

• Failure analysis: Evaluate why the strap failed, if any, i.e. failed within the joint, adjacent to the joint, etc.

• Machine performance: Ensure the strap performs according to specification i.e. feeding, tensioning, and sealing.

• Transport performance: Evaluate how the packaged load is protected e.g. load settlement, corner protection, vibration, and expected storage conditions.

Test repeatability for break strength cannot be proven with just a single test. The test method and acceptance criteria should be agreed before a bulk purchase.

Assess PET Strapping Joint Reliability with Yalan Pack

To ensure a reliable process, Yalan Pack controls material consistency and processing conditions.

As a PET strapping supplier, Yalan Pack offers machine-grade strapping and is open to providing samples for trial use for Packaging Industry applications.

To better assess your needs, provide the model of the machine you intend to use, the strapping you wish to use and the load you transport.

FAQs

Q1: What types of PET strapping does Yalan Pack supply?

Yalan Pack supplies PET machine strapping in various widths, thicknesses, colors, lengths, and strength grades for industrial packaging applications.

Q2: Is Yalan Pack PET strapping suitable for automatic machines?

Yes. Yalan Pack offers PET strapping designed for automatic and semi-automatic packaging lines. Machine compatibility should be verified before bulk ordering.

Q3: How does Yalan Pack support reliable PET heat sealing?

Yalan Pack offers machine-grade PET strapping designed for consistent feeding and reliable heat sealing. Actual joint strength depends on material specifications and sealing conditions.

Q4: What factors affect the heat-seal strength of Yalan Pack PET strapping?

Sealing temperature, pressure, dwell time, cooling conditions, strap thickness, and surface characteristics all influence joint strength.

Q5: Can Yalan Pack provide different PET strapping widths and thicknesses?

Yes. Yalan Pack offers multiple strap dimensions and strength grades. Buyers should confirm available PET specifications and dimensional tolerances before ordering.
